Νέα Αρθρωτό φορτηγό Qingdao Promising 6.0T 4WD Articulated Dumper DP60

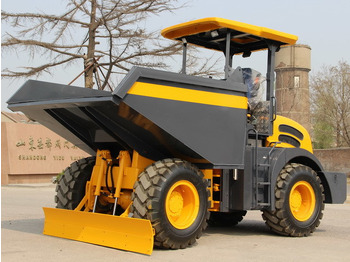

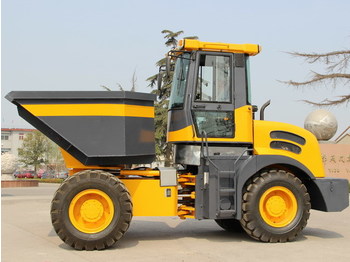

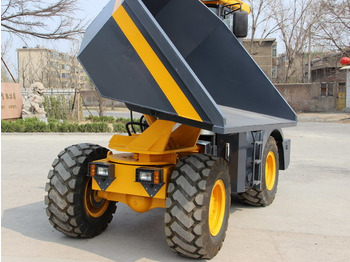

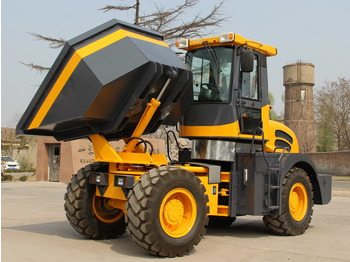

6.0T 4WD Articulated Dumper

Application: A dumper is a vehicle designed for carrying bulk material, often on building sites. Our compact dumpers are designed for any application from conventional building construction and landscaping to tunnel construction and demolition work. This three-way dumper provides an ideal solution as multi-function dumper when considerable manoeuvrability is required. They are ideal vehicles for transport and distribution of materials at building sites and for road works.

Feature:

1. Articulated joint

2. Excellent product quality

3. Durable and easy to service

4. Impressive turning radius for precision and efficiency

5. User-friendliness combined with excellent driver comfort

6. Power Swivel skips enable effective placement of load either side

7. Available with closed cab and heating

Technical Specifications:

Model: DP60 Payload: 6000kg Operating

Weight: 5950kg

Bucket Capacity: 3CBM

Max. Tractive Force: >=55KN

Max. Breakout Force: >=46KN

Max. Gradeability: 30Deg.

Overall Dimension (L x W x H): 5000x2200x3100mm

Min. Turning Radius: 5750mm Engine

Model: YUNNEI YN38

Engine Type: Four-cylinder, In-line, Water-cooled, 4-stroke Diesel Engine

No. of Cylinder-bore/Stroke of Engine: 4 - 108x120mm

Engine Power: 60kW/2400rpm

Max. Torque of Engine: 270N.m

Min. Fuel Consumption Ratio: <=243g/kw.h

Torque Converter: YJ-280A Hydraulic Torque Converter

Gearbox Mode: Countershaft Power-shift

Gear Shift: 2 Forward, 2 Reverse

Max. Speed: 24km/h

Main Reducing Mode: Circular Arc Bevel Gear, Single Stage

Decelerating Mode: Single Stage Planetary Type

Wheel Base: 2530mm

Wheel Tread: 1600mm

Min. Ground Clearance: 310mm

System Working Pressure: 16Mpa

Fuel Tank Capacity: 80L

Service Brake: Foot Pedal Vacuum Booster, Air Over Hydraulic Caliper Disc Brake on 4 Wheels

Parking Brake: Hand Lever Flexible Shaft Controlled Externally Contracting Drum Brake

Tyre Type Specification: 16/70-20-16PR

Front Tyre Pressure: 0.22Mpa

Rear Tyre Pressure: 0.18Mpa

Optional Parts & Functions: Hydraulic Joystick, 180 degree Rotating Dump Bucket, Bulldozing Blade, Self-Loading Bucket and Canopy.

Note:

1. All photos are for reference only. Machines shown may include optional parts.

2. Available optional parts include Hydraulic Joystick, 180 degree Rotating Dump Bucket, Bulldozing Blade, Self-Loading Bucket and Enclosed Cabin.

3. All specifications and design characteristics are subject to change without prior notice.
