Νέα Απορριμματοφόρο Container Side Lifter Sidelifter 5 sections valve with Radio Remote Scanreco

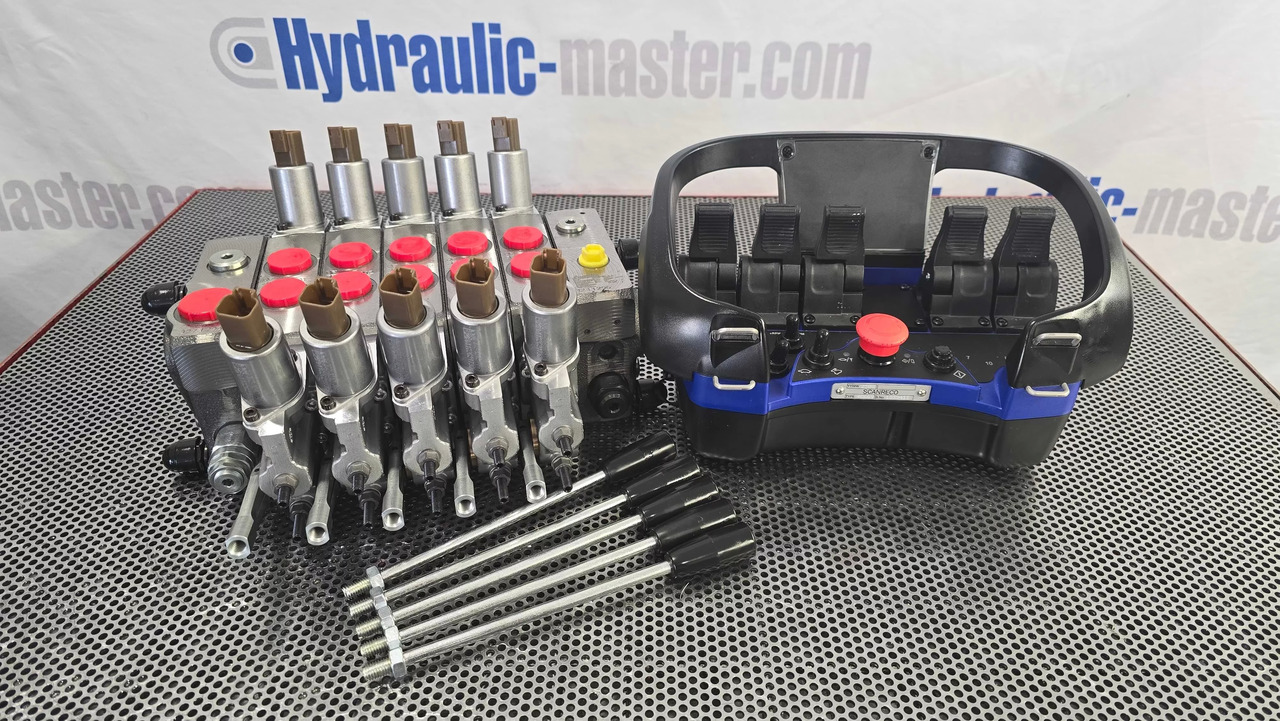

Hydraulic Valve Walvoil DPX 100 12/24V with 5 Proportional Sections, and valve for Open/Closed Center, electro-hydraulic spools and extra Additional Levers, also valve can be build for LS Load sense pump Closed center intlet section.

In this set-up, we can choose which pads we want to control at any given time and which ones are to be inactive. The selection is made using switch number 5, see the video below for details.

Scanreco G2B Mini 5 pads 12/24V. Also available with 2 joysticks for special request.

This kit is configured for the most popular machine settings, supporting up to 5 standard Sideloader self-loading trailer functions: 3 main crane functions and 2 support legs.

The relief valve can also be adjusted as required. Spool type and flow can be individually selected to suit your application. Please send us a diagram, and we can assist further.

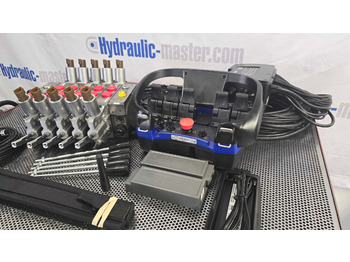

The kit is designed for plug-and-play convenience. We handle everything from the plugs to the software configuration.

Technical support is available and are readily via email, whatsup and telephone.

Feel free to contact us at shop@hydraulic-master.com or damian@hydraulic-master.com for any inquiries or assistance.

Hydraulic, sectional valve Walvoil DPX 100 with compensation, full proportional reliev valve setted for 230 bar (can be adjusted for as factory request), post-compensation sections

Technical specifications of default configuration:

Inlet section: 32GPM 120l/min - Pmax 300 bar 4351psi Power supply port: 3/4" BPS, tank return port: 3/4" BPS + unloading valve 24V

1st Upper crane 80 L/min 21GPM A+B partially opened for pilot check valve electro-hydraulic control on both sides with AMP-JPT or Deutsch connectors with hand lever

2nd Lower crane 80 L/min 21GPM A+B partially opened for pilot check valve electro-hydraulic control on both sides with AMP-JPT or Deutsch connectors with hand lever

3rd Horizontal extension 60 L/min 16GPM A+B closed, electro-hydraulic control on both sides with AMP-JPT or Deutsch connectors with hand lever

4th Stabilizer leg 40 L/min 12GPM A+B partially opened for pilot check valve, electro-hydraulic control on both sides with AMP-JPT or Deutsch connectors with hand lever

5th Stablizer leg 40 L/min 12GPM A+B partially opened for pilot check valve electro-hydraulic control on both sides with AMP-JPT or Deutsch connectors with hand lever

If you require a different dedicated configuration, we can customize it to meet your needs, including variations in spools, voltage, the number of sections, anti-shock valves, connectors, etc.

Outlet section: with the possibility of combining valves, with bleed valve (LS relief), with pressure reducing valve. Control connection "V" and drainage connection "L" closed. Side connections "T1", "P1", "LS1" closed. DBV fixed and sealed to 175 bar at 90L/min.

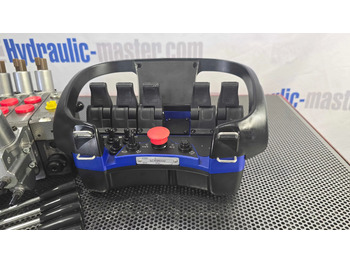

Scanreco G2B Mini with 5 levers

- 1-5 linear levers

- Stop function according to EN ISO 13849-1 Cat. 3, PL e

- Various toggle switches, buttons and rotary switches

- Frequency bands: 433-434 or 902-928MHz (other frequencies available on request)

- Operating range > 100 m / > ~330 ft.

- Degree of protection: IP65

- Operating temperature: -20°C to +70°C / ~-4°F to +160°F

- Cable control: standard length 10 meters / ~33 ft.

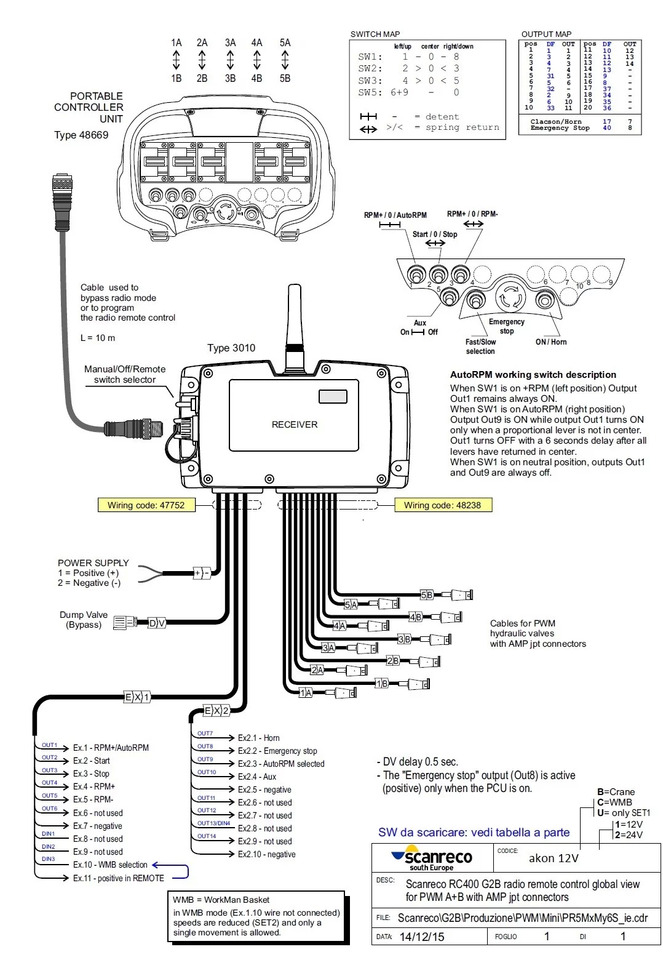

- G2B Receiver PWM12 or 24 VDC power supply

- Choice of radio or cable control

- 8 bi-directional proportional outputs

- All analog outputs are programmable for final setting of speeds

- - 14 digital outputs (where 1 is combined input/output) and 4 digital inputs (where 1 is combined input/output)

- A DV output to control the dump valve

- Radio communication in the ISM band using frequency hopping technology

- Manual mode available to bypass the radio system, providing only the DV output and allowing manual control via the hydraulic manifold (where available).

- Programmable logic with block, soak, decelerate, ramp functions and much more

- Please note that cable sets or connection plug sets are NOT included in the scope of delivery and must be ordered separately if required.

- Dimensions: (W x H x D): 350 x 160 x 190 mm / ~13.78 x 6.30 x 7.48 inches (without color display)
